오늘은 EVE-NG에 Nokia 7750 SR 13.0.R4를 설치하는 방법을 공유하려고 합니다.
[ 작성 기준 ]
VMware Workstation Pro 17.0.0
EVE-NG Community Vertion 6.2.0-4
먼저 구글에 'TiMOS-SR-13.0.R4-vm.qcow2 download'를 검색하여 파일을 다운로드해야 합니다.
1. EVE-NG Nokia 7750 SR 13.0.R4 설치
https://www.eve-ng.net/index.php/documentation/howtos/howto-add-alcatel-7750-sr/
Alcatel 7750 SR -
Versions this guide is based on: EVE Image Name Downloaded Filename Version vCPUs vRAM timos-12.0.R4 TiMOS-SR-12.0.R4-vm.zip B-12.0.R4 1 or 2 2048 timos-12.0.R6 TiMOS-SR-12.0.R6-vm.zip B-12.0.R6 1 or 2 2048 Instructions Other versions should also be suppor
www.eve-ng.net
- 필자는 위 사이트를 참고하여 설치하였다.
- 아래에 쉽게 설명하였으니 따라오면 문제없이 Nokia 7750 SR 13.0.R4 OS를 설치할 수 있다고 생각한다.
1) EVE-NG booting
- 먼저 EVE-NG를 부팅한다.
2) Nokia 7750 SR 13.0.R4 OS upload
root@eve-ng:~# mkdir /opt/unetlab/addons/qemu/timos-13.0.R4
root@eve-ng:~# cd /opt/unetlab/addons/qemu/timos-13.0.R4/
root@eve-ng:/opt/unetlab/addons/qemu/timos-13.0.R4# ls -la
total 8
drwxr-xr-x 2 root root 4096 Aug 23 16:55 .
drwxr-xr-x 7 root root 4096 Aug 23 16:55 ..
root@eve-ng:/opt/unetlab/addons/qemu/timos-13.0.R4#- '/opt/unetlab/addons/qemu' 경로에 'timos-13.0.R4'라는 Directory를 생성한다. 이때, Nokia 7750 SR OS Version에 맞게 Directory 이름을 설정한다.

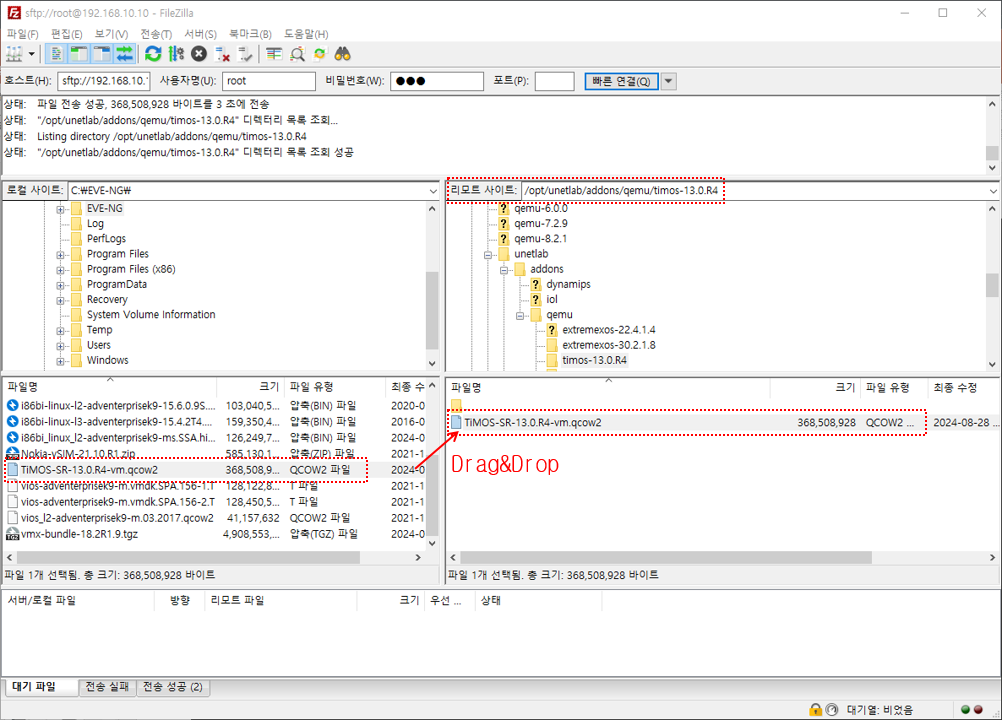

- FTP를 사용할 수 있는 프로그램을 실행한다.
- 위에서 생성한 '/opt/unetlab/addons/qemu/timos-13.0.R4' Directory에 'TiMOS-SR-13.0.R4-vm.qcow2' 파일을 복사한다.
3) Nokia 7750 SR 13.0.R4 image name change
root@eve-ng:/opt/unetlab/addons/qemu/timos-13.0.R4# mv TiMOS-SR-13.0.R4-vm.qcow2 hda.qcow2
root@eve-ng:/opt/unetlab/addons/qemu/timos-13.0.R4# ls -la
total 359880
drwxr-xr-x 2 root root 4096 Aug 28 09:48 .
drwxr-xr-x 10 root root 4096 Aug 24 12:49 ..
-rw-r--r-- 1 root root 368508928 Aug 28 09:45 hda.qcow2
root@eve-ng:/opt/unetlab/addons/qemu/timos-13.0.R4#- 위에서 Upload 한 'TiMOS-SR-13.0.R4-vm.qcow2'를 'hda.qcow2'로 변경한다.
4) Fix permissions
root@eve-ng:~# /opt/unetlab/wrappers/unl_wrapper -a fixpermissions
root@eve-ng:~#- 권한을 수정한다.
5) Nokia 7750 SR 13.0.R4 booting

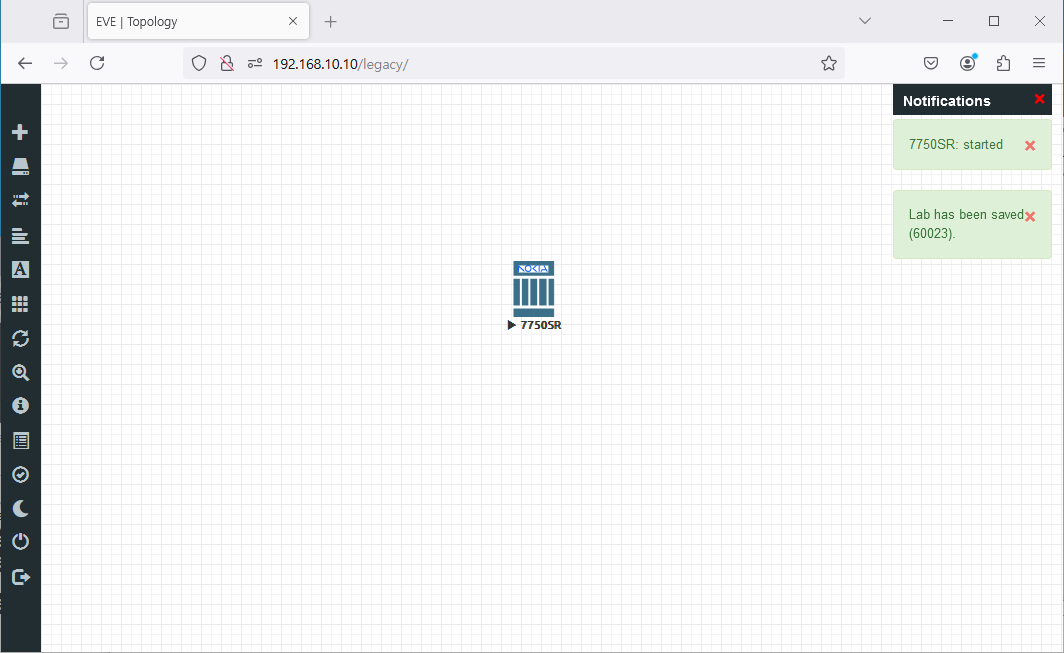

- Web을 이용하여 EVE-NG로 접속하면 'Nokia 7750 VSR'이 추가되어 있다.
- Image가 'timos-13.0.R4'임을 확인한다.
- UUID는 입력할 필요가 없다.
QEMU custom options : -enable-kvm -serial mon:stdio -nographic -nodefconfig -nodefaults -rtc base=utc -no-shutdown -boot order=c -cpu host- QEMU Version, QEMU Arch, QEMU Nic, QEMU custom options은 위 캡처 자료와 동일해야 한다.
- 아래 로그는 Nokia 7750 SR이 부팅되는 과정이다.
더보기
Running in a KVM/QEMU virtual machine
Enabled core count: 1
Total Memory: 1536MB Chassis Type: 0x26
TiMOS-V-13.0.R4 bootrom/i386 ALCATEL ? 7xxx Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:39:36 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
Looking for boot parameters.
tmInitFloppy, Could not initialize Floppy.
Press any key to stop auto-boot...
0
auto-booting...
boot device : ata=0,2
unit number : 0
processor number : 0
host name : 0.0.0.0
file name : cf3:/timos/i386-boot.tim
ftp password (pw) : *****
flags (f) : 0x8
target name (tn) : vRR
startup script (s) : pl=1
other (o) : sr12#niente_a_r2_6f,lava_r3|22|0
Booting from ata=0,2:cf3:/timos/i386-boot.tim
Loading cf3:/timos/i386-boot.tim ...
Version L-13.0.R4, Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
text:(1825920-->4265756) + data:(170976-->601152)
Starting at 0x18000000...
(s) boot params: pl=1; setting TgtPf to 0x00000001
Running in a KVM/QEMU virtual machine
Enabled core count: 1
ACPI: ctrl-x only supported with PXE boot. (version >= 3)
sysVmBootStringGenerate: ERROR: failed parsing 'chassis=VSR-I'
sysVmBootStringGenerate: ERROR: no value for 'chassis=' found
emGetMacAddr: unit 0 is not VALID
tmInitFloppy, Could not initialize Floppy.
Floppy drive not installed (-1)
Total Memory: 1536MB Chassis Type: 0x2 Core Freq: 3399.974 MHz
TiMOS-L-13.0.R4 boot/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
TiMOS BOOT LOADER
Time from clock is WED AUG 28 09:50:24 2024 UTC
Switching serial output to sync mode... done
Looking for cf3:/bof.cfg ... OK, reading
Contents of Boot Options File on cf3:
primary-image cf3:\timos\i386-both.tim
primary-config cf3:\config.cfg
autonegotiate
duplex full
speed 100
wait 3
persist off
no li-local-save
no li-separate
no fips-140-2
console-speed 115200
Contents of Boot Options File (including bios product data)
primary-image cf3:\timos\i386-both.tim
primary-config cf3:\config.cfg
address 1.1.1.1/24 active
autonegotiate
duplex full
speed 100
wait 3
persist off
no li-local-save
no li-separate
no fips-140-2
console-speed 115200
Hit a key within 1 second to change boot parameters...
No license file specified
Primary image location: cf3:\timos\i386-both.tim
Loading image cf3:\timos\i386-both.tim
Version B-13.0.R4, Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
text:(53270240-->151750556) + data:(30609408-->64686464)
Executing TiMOS image at 0x12A000
Running in a KVM/QEMU virtual machine
Enabled core count: 1
sysSmpDisabled WARNING: #######################################################
sysSmpDisabled WARNING: Simulating a multicore board on a single core simulator
sysSmpDisabled WARNING: Some features will behave differently
sysSmpDisabled WARNING: * SMP is not being simulated
sysSmpDisabled WARNING: * not running 64-bit architecture
sysSmpDisabled WARNING: #######################################################
tmInitFloppy, Could not initialize Floppy.
Floppy drive not installed (-1)
Total Memory: 2047MB Chassis Type: 0x2 Core Freq: 3399.898 MHz
TiMOS-B-13.0.R4 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
___ ___ ___ ___
/\ \ /\__\ /\ \ /\ \
\:\ \ ___ /::| | /::\ \ /::\ \
\:\ \ /\__\ /:|:| | /:/\:\ \ /:/\:\ \
/::\ \ _\/__/ /:/|:|__|__ /:/ \:\ \ _\:\~\:\ \
/:/\:\__\ /\__\ /:/ |::::\__\ /:/__/ \:\__\ /\ \:\ \:\__\
/:/ \/__/ /:/ / \/__/~~/:/ / \:\ \ /:/ / \:\ \:\ \/__/
/:/ / /:/ / /:/ / \:\ /:/ / \:\ \:\__\
\/__/ \/__/ /:/ / \:\/:/ / \:\/:/ /
/:/ / \::/ / \::/ /
\/__/ \/__/ \/__/
Running 32 bit architecture
Initializing VMM
Virtual address sharing is disabled
emGetLink: unit 0 is not VALID
Time from clock is WED AUG 28 09:51:08 2024 UTC
Initial DNS resolving preference is ipv4-only
Attempting to exec primary configuration file:
'cf3:\config.cfg' ...
Executed 0 lines in 0.0 seconds from file cf3:\config.cfg
TiMOS-B-13.0.R4 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
Login:
Login: admin
Password:
This simulation software is the property of Alcatel. It may not
be sold, leased, loaned or licensed to any non-Alcatel entity.- admin 계정의 기본 password는 admin이다.
A:vRR# show version
TiMOS-B-13.0.R4 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
A:vRR#- Version 확인
6) Nokia 7750 SR 13.0.R4 booting failure
- 아래와 같이 Nokia 7750 SR 13.0.R4 OS booting 시, 'HALF SYSTEM'이라는 로그가 발생되면 'QEMU custom opions'를 다시 확인한다.
더보기
Running in a KVM/QEMU virtual machine
Enabled core count: 1
Total Memory: 1536MB Chassis Type: 0x26
TiMOS-V-13.0.R4 bootrom/i386 ALCATEL ? 7xxx Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:39:36 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
Looking for boot parameters.
tmInitFloppy, Could not initialize Floppy.
Press any key to stop auto-boot...
0
auto-booting...
boot device : ata=0,2
unit number : 0
processor number : 0
host name : 0.0.0.0
file name : cf3:/timos/i386-boot.tim
ftp password (pw) : *****
flags (f) : 0x8
target name (tn) : vRR
startup script (s) : pl=1
other (o) : sr12#niente_a_r2_6f,lava_r3|22|0
Booting from ata=0,2:cf3:/timos/i386-boot.tim
Loading cf3:/timos/i386-boot.tim ...
Version L-13.0.R4, Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
text:(1825920-->4265756) + data:(170976-->601152)
Starting at 0x18000000...
(s) boot params: pl=1; setting TgtPf to 0x00000001
Running in a KVM/QEMU virtual machine
Enabled core count: 1
ACPI: ctrl-x only supported with PXE boot. (version >= 3)
sysVmBootStringGenerate: ERROR: failed parsing 'chassis=VSR-I'
sysVmBootStringGenerate: ERROR: no value for 'chassis=' found
emGetMacAddr: unit 0 is not VALID
tmInitFloppy, Could not initialize Floppy.
Floppy drive not installed (-1)
Total Memory: 1536MB Chassis Type: 0x2 Core Freq: 3400.012 MHz
TiMOS-L-13.0.R4 boot/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
TiMOS BOOT LOADER
Time from clock is FRI AUG 23 17:01:33 2024 UTC
Switching serial output to sync mode... done
Looking for cf3:/bof.cfg ... OK, reading
Contents of Boot Options File on cf3:
primary-image cf3:\timos\i386-both.tim
primary-config cf3:\config.cfg
autonegotiate
duplex full
speed 100
wait 3
persist off
no li-local-save
no li-separate
no fips-140-2
console-speed 115200
Contents of Boot Options File (including bios product data)
primary-image cf3:\timos\i386-both.tim
primary-config cf3:\config.cfg
address 1.1.1.1/24 active
autonegotiate
duplex full
speed 100
wait 3
persist off
no li-local-save
no li-separate
no fips-140-2
console-speed 115200
Hit a key within 1 second to change boot parameters...
No license file specified
Primary image location: cf3:\timos\i386-both.tim
Loading image cf3:\timos\i386-both.tim
Version B-13.0.R4, Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
text:(53270240-->151750556) + data:(30609408-->64686464)
Executing TiMOS image at 0x12A000
Running in a KVM/QEMU virtual machine
Enabled core count: 1
sysSmpDisabled WARNING: #######################################################
sysSmpDisabled WARNING: Simulating a multicore board on a single core simulator
sysSmpDisabled WARNING: Some features will behave differently
sysSmpDisabled WARNING: * SMP is not being simulated
sysSmpDisabled WARNING: * not running 64-bit architecture
sysSmpDisabled WARNING: #######################################################
tmInitFloppy, Could not initialize Floppy.
Floppy drive not installed (-1)
Total Memory: 2047MB Chassis Type: 0x2 Core Freq: 3399.949 MHz
TiMOS-B-13.0.R4 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
___ ___ ___ ___
/\ \ /\__\ /\ \ /\ \
\:\ \ ___ /::| | /::\ \ /::\ \
\:\ \ /\__\ /:|:| | /:/\:\ \ /:/\:\ \
/::\ \ _\/__/ /:/|:|__|__ /:/ \:\ \ _\:\~\:\ \
/:/\:\__\ /\__\ /:/ |::::\__\ /:/__/ \:\__\ /\ \:\ \:\__\
/:/ \/__/ /:/ / \/__/~~/:/ / \:\ \ /:/ / \:\ \:\ \/__/
/:/ / /:/ / /:/ / \:\ /:/ / \:\ \:\__\
\/__/ \/__/ /:/ / \:\/:/ / \:\/:/ /
/:/ / \::/ / \::/ /
\/__/ \/__/ \/__/
Running 32 bit architecture
Initializing VMM
Virtual address sharing is disabled
emGetLink: unit 0 is not VALID
Time from clock is FRI AUG 23 17:02:14 2024 UTC
Initial DNS resolving preference is ipv4-only
Attempting to exec primary configuration file:
'cf3:\config.cfg' ...
Executed 0 lines in 0.0 seconds from file cf3:\config.cfg
TiMOS-B-13.0.R4 both/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:21:07 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
Login:
tmInitFloppy, Could not initialize Floppy.
Press any key to stop auto-boot...
0
auto-booting...
boot device : ata=0,2
unit number : 0
processor number : 0
host name : 0.0.0.0
file name : cf3:/timos/i386-boot.tim
ftp password (pw) : *****
flags (f) : 0x8
target name (tn) : vRR
startup script (s) : pl=1
other (o) : sr12#niente_a_r2_6f,lava_r3|22|0
Booting from ata=0,2:cf3:/timos/i386-boot.tim
Loading cf3:/timos/i386-boot.tim ...
Version L-13.0.R4, Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
text:(1825920-->4265756) + data:(170976-->601152)
Starting at 0x18000000...
(s) boot params: pl=1; setting TgtPf to 0x00000001
Running in a KVM/QEMU virtual machine
ACPI: ctrl-x only supported with PXE boot. (version >= 3)
sysVmBootStringGenerate: ERROR: failed parsing 'chassis=VSR-I'
sysVmBootStringGenerate: ERROR: no value for 'chassis=' found
emGetMacAddr: unit 0 is not VALID
tmInitFloppy, Could not initialize Floppy.
Floppy drive not installed (-1)
Total Memory: 1536MB Chassis Type: 0x2 Core Freq: 3399.922 MHz
TiMOS-L-13.0.R4 boot/i386 ALCATEL SR 7750 Copyright (c) 2000-2015 Alcatel-Lucent.
All rights reserved. All use subject to applicable license agreements.
Built on Wed Jul 29 16:13:30 PDT 2015 by builder in /rel13.0/b1/R4/panos/main
TiMOS BOOT LOADER
platformVmRestrict: unsupported apic mode (0)
x2apic is required
HALT SYSTEM
'Network > Emulator' 카테고리의 다른 글
| EVE-NG Cisco vIOS Router 설치 (1) | 2024.10.09 |
|---|---|
| EVE-NG Cisco IOS 설치 (4) | 2024.10.07 |
| EVE-NG Cisco IOL(IOU on Linux) 설치 (6) | 2024.10.05 |
| EVE-NG Nokia 7750 SR 21.10.R1 설치 (1) | 2024.10.03 |
| EVE-NG ExtremeXOS 30.2.1.8 설치 (4) | 2024.09.29 |
| EVE-NG ExtremeXOS 22.4.1.4 설치 (3) | 2024.09.27 |
| EVE-NG Juniper vMX 18.2R1.9 설치 (1) | 2024.09.25 |
| EVE-NG 다운로드, 설치[Community v6.2.0-4] (1) | 2024.09.23 |
