EVE-NG ExtremeXOS 30.2.1.8 설치

오늘은 EVE-NG에 ExtremeXOS 30.2.1.8을 설치하는 방법을 공유하려고 합니다.

[ 작성 기준 ]
VMware Workstation Pro 17.0.0
EVE-NG Community Vertion 6.2.0-4

먼저 구글에 'EXOS-VM_v30.2.1.8.qcow2 download'를 검색하여 파일을 다운로드해야 합니다.



1. EVE-NG ExtremeXOS 30.2.1.8 설치

https://www.eve-ng.net/index.php/documentation/howtos/howto-add-extreme-exos/

Extreme EXOS -

• 필자는 위 사이트를 참고하여 설치하였다.
• 아래에 쉽게 설명하였으니 따라오면 문제없이 ExtremeXOS 30.2.1.8 OS를 설치할 수 있다고 생각한다.



1) EVE-NG booting

• 먼저 EVE-NG를 부팅한다.



2) ExtremeXOS 30.2.1.8 OS upload

root@eve-ng:~# mkdir /opt/unetlab/addons/qemu/extremexos-30.2.1.8
root@eve-ng:~# cd /opt/unetlab/addons/qemu/extremexos-30.2.1.8/
root@eve-ng:/opt/unetlab/addons/qemu/extremexos-30.2.1.8# ls -la
total 8
drwxr-xr-x 2 root root 4096 Aug 23 14:55 .
drwxr-xr-x 6 root root 4096 Aug 23 14:55 ..
root@eve-ng:/opt/unetlab/addons/qemu/extremexos-30.2.1.8#

• '/opt/unetlab/addons/qemu' 경로에 'extremexos-30.2.1.8'라는 Directory를 생성한다. 이때, ExtremeXOS Version에 맞게 Directory 이름을 설정한다.



• FTP를 사용할 수 있는 프로그램을 실행한다.
• 위에서 생성한 '/opt/unetlab/addons/qemu/extremexos-30.2.1.8' Directory에 'EXOS-VM_v30.2.1.8.qcow2' 파일을 복사한다.



3) ExtremeXOS 30.2.1.8 image name change

root@eve-ng:~# cd /opt/unetlab/addons/qemu/extremexos-30.2.1.8/
root@eve-ng:/opt/unetlab/addons/qemu/extremexos-30.2.1.8# mv EXOS-VM_v30.2.1.8.qcow2 hda.qcow2
root@eve-ng:/opt/unetlab/addons/qemu/extremexos-30.2.1.8# ls -la
total 346888
drwxr-xr-x 2 root root      4096 Aug 23 14:56 .
drwxr-xr-x 6 root root      4096 Aug 23 14:55 ..
-rw-r--r-- 1 root root 355205120 Aug 23 14:56 hda.qcow2
root@eve-ng:/opt/unetlab/addons/qemu/extremexos-30.2.1.8#

• 위에서 Upload 한 'EXOS-VM_v30.2.1.8.qcow2'를 'hda.qcow2'로 변경한다.



4) Fix permissions

root@eve-ng:~# /opt/unetlab/wrappers/unl_wrapper -a fixpermissions

root@eve-ng:~#

• 권한을 수정한다.



5) ExtremeXOS 30.2.1.8 booting

• Web을 이용하여 EVE-NG로 접속하면 'ExtremeXOS'가 추가되어 있다.



• Image가 'extremexos-30.2.1.8'임을 확인한다.
• UUID는 입력할 필요가 없다.



QEMU custom options : -machine type=pc-1.0,accel=kvm -cpu Nehalem -nographic -rtc base=utc

• QEMU Version, QEMU Arch, QEMU Nic, QEMU custom options은 위 캡처 자료와 동일해야 한다.

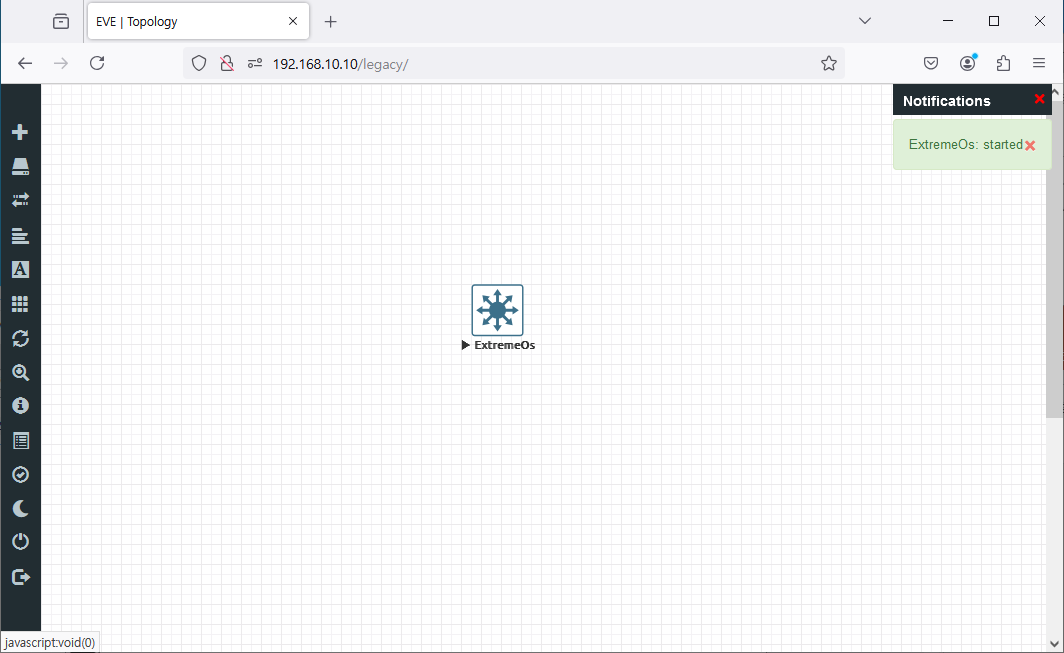

• 아래 로그는 ExtremeXOS가 부팅되는 과정이다.

 GNU GRUB  version 2.02

 +----------------------------------------------------------------------------+
 |*Primary OS Image on (hd0,1) using VGA console                              |
 | Secondary OS Image on (hd0,2) using VGA console                            |
 | Primary OS Image on (hd0,1) using serial console                           |
 | Secondary OS Image on (hd0,2) using serial console                         |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 |                                                                            |
 +----------------------------------------------------------------------------+

      Use the ^ and v keys to select which entry is highlighted.
      Press enter to boot the selected OS, `e' to edit the commands
      before booting or `c' for a command-line.
   The highlighted entry will be executed automatically in 0s.
  Booting `Primary OS Image on (hd0,1) using VGA console'


(pending-AAA) login:

Authentication Service (AAA) on the master node is now available for login.



login:



login: admin
password:

ExtremeXOS
Copyright (C) 1996-2019 Extreme Networks. All rights reserved.
This product is protected by one or more US patents listed at https://www.extremenetworks.com/company/legal/patents/ along with their foreign counterparts.
==============================================================================


Press the <tab> or '?' key at any time for completions.
Remember to save your configuration changes.


This switch currently has some management methods enabled for convenience reasons.
Please answer these questions about the security settings you would like to use.
You may quit and accept the default settings by entering 'q' at any time.

!!!!  NOTE: Spanning Tree default changed in ExtremeXOS 22.2  !!!!

Multiple Spanning Tree Protocol (MSTP) is enabled by default to prevent
broadcast storms

Would you like to disable MSTP? [y/N/q]: quit

The switch offers an enhanced security mode. Would you like to read more,
and have the choice to enable this enhanced security mode? [y/N/q]:

Telnet is enabled by default. Telnet is unencrypted and has been the target of
security exploits in the past.

Would you like to disable Telnet? [y/N/q]:

SNMP access is disabled by default. SNMPv1/v2c uses no encryption, SNMPv3 can be
configured to eliminate this problem.

Would you like to enable SNMPv1/v2c? [y/N/q]:

Would you like to enable SNMPv3? [y/N/q]:

All ports are enabled by default. In some secure applications, it maybe more
desirable for the ports to be turned off.

Would you like unconfigured ports to be turned off by default? [y/N/q]:

No failsafe account username and password are in effect.  If you choose to
configure them, please remember them because they cannot be recovered.
Would you like to configure the failsafe username and password now? [y/N/q]:

Since you have chosen less secure management methods, please remember to
increase the security of your network by taking the following actions:

  * change your admin password

* EXOS-VM.1 #

• admin 계정의 기본 Password는 없다.



* EXOS-VM.1 # show version
Switch      : PN:1N2039    SN:123456   Rev 01 BootROM: 1.2        IMG: 30.2.1.8
PSUCTRL-1   : PN:MEAD      SN:MD1      Rev 01 BootROM: 2.1
PSUCTRL-2   : PN:MEAD      SN:MD2      Rev 11 BootROM: 2.3
mouse-usb   : PN:MOUSE     SN:4321     Rev 11 BootROM: 4.3
floppy-A    :
PSU-1       : Internal PSU-2 PN:1N2039 SN:12345
PSU-2       : Internal PSU-3 PN:1N2039 SN:12345

Image   : ExtremeXOS version 30.2.1.8 by release-manager
          on Tue Apr 30 18:59:14 EDT 2019
BootROM : 1.2
Certified Version : EXOS Linux  4.14.107, FIPS fips-ecp-2.0.16

Build Tools Version : exos-x32-sdk-2.5.1.1.3

• Version 확인
