EVE-NG Juniper vQFX 19.4R1.10 설치

오늘은 EVE-NG에 Juniper vQFX 19.4R1.10을 설치하는 방법을 공유하려고 합니다.

[ 작성 기준 ]
VMware Workstation Pro 17.0.0
EVE-NG Community Vertion 6.2.0-4



먼저 인터넷에서 아래와 같은 이미지를 다운로드해야 합니다.

PFE download file: vqfx-19.4R1.10-2019010209-pfe-qemu.qcow
RE download file: vqfx-19.4R1.10-re-qemu.qcow2



1. EVE-NG Juniper vQFX 19.4R1.10 설치

https://www.eve-ng.net/index.php/documentation/howtos/howto-add-juniper-vqfx/

Juniper vQFX -

• 필자는 위 사이트를 참고하여 설치하였다.
• 아래에 쉽게 설명하였으니 따라오면 문제없이 Juniper vQFX 19.4R1.10 OS를 설치할 수 있다고 생각한다.

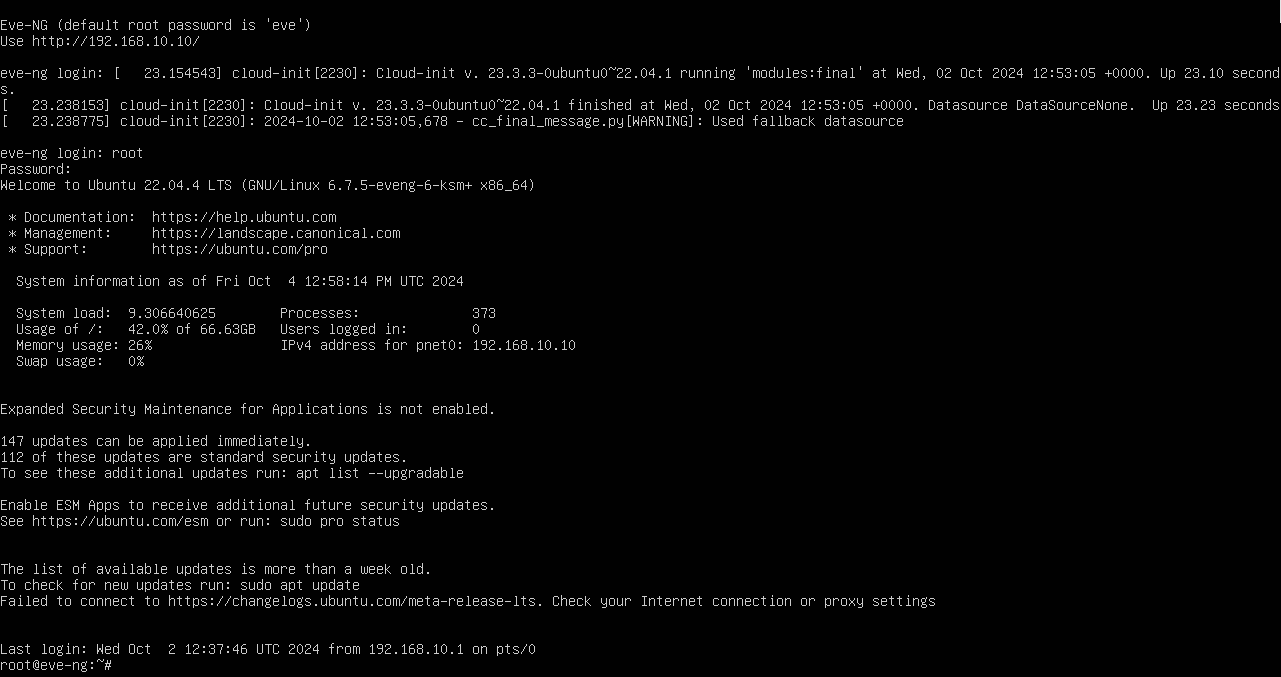

1) EVE-NG booting

• 먼저 EVE-NG를 부팅한다.



2) EVE-NG Juniper vQFX 19.4R1.10 OS upload

root@eve-ng:~# mkdir /opt/unetlab/addons/qemu/vqfxpfe-10K-F-19.4R1.10
root@eve-ng:~# mkdir /opt/unetlab/addons/qemu/vqfxre-10K-F-19.4R1.10

root@eve-ng:~# ls -l /opt/unetlab/addons/qemu/
total 56
drwxr-xr-x 2 root root 4096 Aug 23 14:46 extremexos-22.4.1.4
drwxr-xr-x 2 root root 4096 Aug 23 14:56 extremexos-30.2.1.8
drwxr-xr-x 2 root root 4096 Aug 28 09:48 timos-13.0.R4
drwxr-xr-x 2 root root 4096 Aug 23 18:50 timos-21.10.R1
lrwxrwxrwx 1 root root   39 Aug 23 18:48 timoscpm-21.10.R1 -> /opt/unetlab/addons/qemu/timos-21.10.R1
lrwxrwxrwx 1 root root   39 Aug 23 18:48 timosiom-21.10.R1 -> /opt/unetlab/addons/qemu/timos-21.10.R1
drwxr-xr-x 2 root root 4096 Aug 24 12:39 vios-adventerprisek9-m.SPA.156-2.T
drwxr-xr-x 2 root root 4096 Aug 24 13:56 viosl2-adventerprisek9-m.03.2017
drwxr-xr-x 2 root root 4096 Aug 23 21:33 vmxvcp-18.2R1.9-VCP
drwxr-xr-x 2 root root 4096 Aug 23 21:34 vmxvfp-18.2R1.9-VFP
drwxr-xr-x 2 root root 4096 Oct  6 10:16 vqfxpfe-10K-F-17.4R1.16
drwxr-xr-x 2 root root 4096 Oct  6 11:13 vqfxpfe-10K-F-18.4R1.8
drwxr-xr-x 2 root root 4096 Oct  6 12:38 vqfxpfe-10K-F-19.4R1.10
drwxr-xr-x 2 root root 4096 Oct  6 10:16 vqfxre-10K-F-17.4R1.16
drwxr-xr-x 2 root root 4096 Oct  6 11:13 vqfxre-10K-F-18.4R1.8
drwxr-xr-x 2 root root 4096 Oct  6 12:38 vqfxre-10K-F-19.4R1.10

• '/opt/unetlab/addons/qemu' 경로에 'vqfxpfe-10K-F-19.4R1.10' 및 'vqfxre-10K-F-19.4R1.10' Directory를 생성한다.



• FTP를 사용할 수 있는 프로그램을 실행한다.
• 위에서 생성한 'vqfxpfe-10K-F-19.4R1.10' Directory에 'vqfx-19.4R1.10-2019010209-pfe-qemu.qcow' 파일을 복사한다.
• 위에서 생성한 'vqfxre-10K-F-19.4R1.10' Directory에 'vqfx-19.4R1.10-re-qemu.qcow2' 파일을 복사한다.



3) Juniper vQFX 19.4R1.10 image name change

root@eve-ng:~# mv /opt/unetlab/addons/qemu/vqfxpfe-10K-F-19.4R1.10/vqfx-19.4R1.10-2019010209-pfe-qemu.qcow /opt/unetlab/addons/qemu/vqfxpfe-10K-F-19.4R1.10/hda.qcow2
root@eve-ng:~# mv /opt/unetlab/addons/qemu/vqfxre-10K-F-19.4R1.10/vqfx-19.4R1.10-re-qemu.qcow2 /opt/unetlab/addons/qemu/vqfxre-10K-F-19.4R1.10/hda.qcow2

root@eve-ng:~# ls -l /opt/unetlab/addons/qemu/vqfxpfe-10K-F-19.4R1.10/
total 744964
-rw-r--r-- 1 root root 762839040 Oct  6 12:40 hda.qcow2

root@eve-ng:~# ls -l /opt/unetlab/addons/qemu/vqfxre-10K-F-19.4R1.10/
total 659204
-rw-r--r-- 1 root root 675020800 Oct  6 12:40 hda.qcow2

• 위와 같이 파일 이름을 EVE-NG 형식에 맞게 변경한다.



4) Fix permissions

root@eve-ng:~# /opt/unetlab/wrappers/unl_wrapper -a fixpermissions

root@eve-ng:~#

• 권한을 수정한다.



5) Juniper vQFX 19.4R1.10 booting

• Web을 이용하여 EVE-NG로 접속하면 'Junier vQFX PFE' 및 'Junier vQFX RE'가 추가되어 있다.



• Image가 'vqfxpfe-10K-F-19.4R1.10'임을 확인한다.
• UUID 입력 등 다른 설정을 변경할 필요가 없다.
• 기본적으로 RAM은 2048MB로 되어있지만 RAM이 부족하신 분들은 1024MB로 설정해도 사용에 문제없음을 확인했다.





• Image가 'vqfxre-10K-F-19.4R1.10'임을 확인한다.
• UUID 입력 등 다른 설정을 변경할 필요가 없다.
• 기본적으로 RAM은 3072MB로 되어있지만 RAM이 부족하신 분들은 1024MB로 설정해도 사용에 문제없음을 확인했다.





• RE와 PFE는 'em1' 인터페이스로 연결되어야 한다.



• 아래 로그는 RE가 부팅되는 과정이다

Loading /boot/loader
Consoles: serial port
BIOS drive A: is disk0
BIOS drive C: is disk1
BIOS 639kB/3144696kB available memory

FreeBSD/i386 bootstrap loader, Revision 1.2
(builder@qnc-jre-emake1t, Thu Dec 19 03:50:25  2019)
Can't open /boot/init.4th.
Loading /boot/defaults/loader.conf
/kernel text=0xcf62b8 data=0x879f4+0x11a155c syms=[0x4+0xc44b0+0x4+0x130837]
/boot/modules/virtio.ko text=0x20cc data=0x204 syms=[0x4+0x7a0+0x4+0x900]
/boot/modules/virtio_pci.ko text=0x2d8c data=0x1fc+0x8 syms=[0x4+0x8a0+0x4+0xaa3]
/boot/modules/virtio_blk.ko text=0x28ac data=0x1ec+0xc syms=[0x4+0x890+0x4+0x906]
/boot/modules/if_vtnet.ko text=0x604c data=0x354+0x10 syms=[0x4+0xcf0+0x4+0xde5]
/boot/modules/virtio_console.ko text=0x35a0 data=0x188+0xc syms=[0x4+0x8c0+0x4+0x955]


Hit [Enter] to boot immediately, or space bar for command prompt.
Booting [/kernel]...
/
Simulating VIRTUAL ELIT!!

vQFX_serial_number: VM5F3D5FF6E7
Serial Number: VM5F3D5FF6E7
Product Name: vQFX-TVP PC (i440FX + PIIX, 1996)
Version: 1.0i440fx-2.0
Board Version: 1GDB: debug ports: sio
GDB: current port: sio
KDB: debugger backends: ddb gdb kdm
KDB: current backend: ddb
Copyright (c) 1996-2019, Juniper Networks, Inc.
All rights reserved.
Copyright (c) 1992-2007 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
JUNOS 19.4R1.10 #0: 2019-12-19 03:54:05 UTC
    builder@qnc-jre-emake1t:/volume/build/junos/19.4/release/19.4R1.10/obj/i386/junos/bsd/kernels/JUNIPER-QFX/kernel
can't re-use a leaf (fe_storm_timeout)!
can't re-use a leaf (alt_break_to_debugger)!
can't re-use a leaf (break_to_debugger)!
can't re-use a leaf (nssu_upgraded)!
acpi_alloc_wakeup_handler: can't alloc wake memory
ACPI APIC Table: <BOCHS  BXPCAPIC>
Timecounter "i8254" frequency 1193182 Hz quality 0
CPU: AMD Ryzen 5 2600 Six-Core Processor             (3400.17-MHz 686-class CPU)
  Origin = "AuthenticAMD"  Id = 0x800f82  Stepping = 2
  Features=0x78bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2>
  Features2=0xf7f83203<SSE3,<b1>,SSSE3,<b12>,CX16,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,<b24>,<b25>,XSAVE,<b28>,<b29>,<b30>,<b31>>
  AMD Features=0x2e500800<SYSCALL,NX,MMX+,FFXSR,Page1GB,RDTSCP,LM>
  AMD Features2=0x4003f7<LAHF,CMP,SVM,CR8,ABM,SSE4A,MAS,Prefetch,OSVW,<b22>>
real memory  = 3221225472 (3072 MB)
avail memory = 1936330752 (1846 MB)
Security policy loaded: Junos MAC/veriexec (mac_veriexec)
MAC/veriexec fingerprint module loaded: SHA256
MAC/veriexec fingerprint module loaded: SHA1
ioapic0 <Version 1.1> irqs 0-23 on motherboard
netisr_init: forcing maxthreads from 4 to 1
ETHERNET SOCKET BRIDGE initialising
random: <Software, Yarrow> initialized
fpga driver loaded, 0 (null)
FXPCI warning: hw.pci.enable_static_config is not set.
Creating PCI Scan thread
Initializing DCF  platform properties ..
Calling dcf_prds_hw_init for platform hw vecs initialization
acpi0: <BOCHS BXPCRSDT> on motherboard
acpi0: Power Button (fixed)
Timecounter "ACPI-safe" frequency 3579545 Hz quality 1000
acpi_timer0: <24-bit timer at 3.579545MHz> port 0xb008-0xb00b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
Correcting Natoma config for non-SMP
isab0: <PCI-ISA bridge> at device 1.0 on pci0
isa0: <ISA bus> on isab0
atapci0: <Intel PIIX3 WDMA2 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xc1e0-0xc1ef at device 1.1 on pci0
ata0: <ATA channel 0> on atapci0
ata1: <ATA channel 1> on atapci0
smb0: <Intel 82371AB SMB controller> irq 9 at device 1.3 on pci0
pci0: <display, VGA> at device 2.0 (no driver attached)
virtio_pci0: <VirtIO PCI Network adapter> port 0xc000-0xc01f mem 0xfebd1000-0xfebd1fff irq 11 at device 3.0 on pci0
em0: <VirtIO Networking Adapter> on virtio_pci0
virtio_pci0: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci0: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci1: <VirtIO PCI Network adapter> port 0xc020-0xc03f mem 0xfebd2000-0xfebd2fff irq 11 at device 4.0 on pci0
em1: <VirtIO Networking Adapter> on virtio_pci1
virtio_pci1: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci1: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci2: <VirtIO PCI Network adapter> port 0xc040-0xc05f mem 0xfebd3000-0xfebd3fff irq 10 at device 5.0 on pci0
em2: <VirtIO Networking Adapter> on virtio_pci2
virtio_pci2: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci2: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci3: <VirtIO PCI Network adapter> port 0xc060-0xc07f mem 0xfebd4000-0xfebd4fff irq 10 at device 6.0 on pci0
em3: <VirtIO Networking Adapter> on virtio_pci3
virtio_pci3: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci3: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci4: <VirtIO PCI Network adapter> port 0xc080-0xc09f mem 0xfebd5000-0xfebd5fff irq 11 at device 7.0 on pci0
em4: <VirtIO Networking Adapter> on virtio_pci4
virtio_pci4: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci4: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci5: <VirtIO PCI Network adapter> port 0xc0a0-0xc0bf mem 0xfebd6000-0xfebd6fff irq 11 at device 8.0 on pci0
em5: <VirtIO Networking Adapter> on virtio_pci5
virtio_pci5: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci5: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci6: <VirtIO PCI Network adapter> port 0xc0c0-0xc0df mem 0xfebd7000-0xfebd7fff irq 10 at device 9.0 on pci0
em6: <VirtIO Networking Adapter> on virtio_pci6
virtio_pci6: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci6: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci7: <VirtIO PCI Network adapter> port 0xc0e0-0xc0ff mem 0xfebd8000-0xfebd8fff irq 10 at device 10.0 on pci0
em7: <VirtIO Networking Adapter> on virtio_pci7
virtio_pci7: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci7: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci8: <VirtIO PCI Network adapter> port 0xc100-0xc11f mem 0xfebd9000-0xfebd9fff irq 11 at device 11.0 on pci0
em8: <VirtIO Networking Adapter> on virtio_pci8
virtio_pci8: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci8: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci9: <VirtIO PCI Network adapter> port 0xc120-0xc13f mem 0xfebda000-0xfebdafff irq 11 at device 12.0 on pci0
em9: <VirtIO Networking Adapter> on virtio_pci9
virtio_pci9: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci9: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci10: <VirtIO PCI Network adapter> port 0xc140-0xc15f mem 0xfebdb000-0xfebdbfff irq 10 at device 13.0 on pci0
em10: <VirtIO Networking Adapter> on virtio_pci10
virtio_pci10: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci10: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci11: <VirtIO PCI Network adapter> port 0xc160-0xc17f mem 0xfebdc000-0xfebdcfff irq 10 at device 14.0 on pci0
em11: <VirtIO Networking Adapter> on virtio_pci11
virtio_pci11: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci11: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci12: <VirtIO PCI Network adapter> port 0xc180-0xc19f mem 0xfebdd000-0xfebddfff irq 11 at device 15.0 on pci0
em12: <VirtIO Networking Adapter> on virtio_pci12
virtio_pci12: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci12: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci13: <VirtIO PCI Network adapter> port 0xc1a0-0xc1bf mem 0xfebde000-0xfebdefff irq 11 at device 16.0 on pci0
em13: <VirtIO Networking Adapter> on virtio_pci13
virtio_pci13: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci13: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
virtio_pci14: <VirtIO PCI Network adapter> port 0xc1c0-0xc1df mem 0xfebdf000-0xfebdffff irq 10 at device 17.0 on pci0
em14: <VirtIO Networking Adapter> on virtio_pci14
virtio_pci14: host features: 0x799fffe7 <EventIdx,RingIndirect,0x8000000,NotifyOnEmpty,0x800000,RxModeExtra,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,TxUFO,TxTSOECN,TxTSOv6,TxTSOv4,RxUFO,RxECN,RxTSOv6,RxTSOv4,TxAllGSO,MacAddress,0x4,RxChecksum,TxChecksum>
virtio_pci14: negotiated features: 0x110f8020 <RingIndirect,NotifyOnEmpty,VLanFilter,RxMode,ControlVq,Status,MrgRxBuf,MacAddress>
cpu0: <ACPI CPU> on acpi0
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
sio0: <16550A-compatible COM port> port 0x3f8-0x3ff irq 4 flags 0x90 on acpi0
sio0: type 16550A, console
orm0: <ISA Option ROMs> at iomem 0xc0000-0xc8fff,0xec800-0xeffff on isa0
vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
sc0: <System console> at flags 0x100 on isa0
sc0: VGA <16 virtual consoles, flags=0x300>
sio1: configured irq 5 not in bitmap of probed irqs 0
sio1: port may not be enabled
sio2: configured irq 3 not in bitmap of probed irqs 0
sio2: port may not be enabled
sio3: configured irq 7 not in bitmap of probed irqs 0
sio3: port may not be enabled
Initializing product: 175 ..
prds_tok_init: Token init was successfly done
Timecounter "TSC" frequency 3400165580 Hz quality 800
Loading the NETPFE fc module
Registering tcp_platform_dependent = tcp_handle_special_ports
random: unblocking device.
ad0: 4095MB <QEMU HARDDISK 2.0.2> at ata0-master WDMA2
Trying to mount root from ufs:/dev/ad0s1a
Kernel thread "kdm_kdb" (pid 68) exited prematurely.
Kernel thread "wkupdaemon" (pid 70) exited prematurely.
Attaching /packages/jbase via /dev/mdctl...
Mounted jbase package on /dev/md0...

Checking sanity of /config [ /dev/ad0s1e ] ... done (full)
Disabling soft update on /config [ /dev/ad0s1e ] ... done
Checking sanity of / [ /dev/ad0s1a ] ... done (full)
Disabling soft update on / [ /dev/ad0s1a ] ... done
Mounted jkernel package on /dev/md1...
Mounted jpfe package on /dev/md2...
Mounted jdocs package on /dev/md3...
Mounted jroute package on /dev/md4...
Executing /packages/mnt/jroute-qfx-x86-32-19.4R1.10/mount.post..
Mounted jcrypto package on /dev/md5...
Mounted jsd package on /dev/md6...
Mounted jsdn-i386 package on /dev/md7...
Mounted jswitch package on /dev/md8...
Mounted jweb package on /dev/md9...
Executing /packages/mnt/jweb-qfx-19.4R1.10/mount.post..
Mounted py-base-i386 package on /dev/md10...
Mounted py-base2-i386 package on /dev/md11...
Mounted py-extensions-i386 package on /dev/md12...
Mounted py-extensions2-i386 package on /dev/md13...
swapon: adding /dev/ad0s1b as swap device
Automatic reboot in progress...
** Last Mounted on /config
** Phase 1 - Check Blocks and Sizes
** Phase 2 - Check Pathnames
** Phase 3 - Check Connectivity
** Phase 4 - Check Reference Counts
** Phase 5 - Check Cyl groups
27 files, 33 used, 309046 free (6 frags, 77260 blocks, 0.0% fragmentation)
sysctl: unknown oid 'dev.ad.1'
Marker feature is not supportedMarker feature is not supportedmount_nullfs: Resource deadlock avoided
Failed to mount null file system for HTTPD on /packages/mnt/jweb/jail/var/etc
Creating initial configuration...mgd: commit complete
Setting initial options:  debugger_on_panic=NO debugger_on_break=YES.
Starting optional daemons:  kdmmachdep.do_minidump: 1 -> 1
kernel dumps on /dev/ad0s1b
Check for coredumps
savecore: Router rebooting after a normal shutdown...
savecore: Router rebooting after a normal shutdown...
savecore: no dumps found
.
Doing initial network setup:.
Initial interface configuration:
additional daemons:.
Enhanced arp scale is disabled
Additional routing options:kern.module_path: /boot//kernel;/boot/modules -> /boot/modules;/modules/peertype;/modules/ifpfe_drv;/modules/ifpfe_media;/modules/platform;/modules;
 re_fpga kld
re-fpga module loadednot a LPC device id
kld netpfe media: ifpfem_otnkld netpfe drv: ifpfed_eia530 ifpfed_ep ifpfed_irb ifpfed_lt ifpfed_ppeer ifpfed_svcs ifpfed_vtkld platform: bcm bcmxxx dc_ifpfeLoading the DC Platform NETPFE module
 fdcsio1: configured irq 5 not in bitmap of probed irqs 0
sio1: port may not be enabled
sio2: configured irq 3 not in bitmap of probed irqs 0
sio2: port may not be enabled
sio3: configured irq 7 not in bitmap of probed irqs 0
sio3: port may not be enabled
fdc1: <floppy drive controller> port 0x3f2-0x3f5,0x3f7 irq 6 drq 2 on acpi0
fdc1: does not respond
device_attach: fdc1 attach returned 6
 if_bge if_em if_vcp ixgbekld peertype: peertype_fxpc peertype_hcm peertype_sfi peertype_slavere grat_arp_on_ifup=YES: net.link.ether.inet.grat_arp_on_ifup: 1 -> 1
 ipsec kldcryptosoft0: <software crypto> on motherboard
 kats kldIPsec: Initialized Security Association Processing.
.
Doing additional network setup:.
Starting final network daemons:.
 chassis.ko loaded Loading JUNOS chassis module
chassis_init_hw_chassis_startup_time: chassis startup time 0.000000
machdep.bootsuccess: 0 -> 0
hw.dcf.auto_upgrade_enabled: 0 -> 1
Configuring IP (169.254.0.2) and mtu (9500) for em1.0
setting ldconfig path: /usr/lib /opt/lib
starting standard daemons: cron.
Initial rc.i386 initialization: microcode kld.

 Lock Manager
RDM Embedded 7 [04-Aug-2006] http://www.birdstep.com
Copyright (c) 1992-2006 Birdstep Technology, Inc.  All Rights Reserved.

Unix Domain sockets Lock manager
Lock manager 'lockmgr' started successfully.

Database Initialization Utility
RDM Embedded 7 [04-Aug-2006] http://www.birdstep.com
Copyright (c) 1992-2006 Birdstep Technology, Inc.  All Rights Reserved.

Profile database initialized
Local package initialization: kdmmachdep.do_minidump: 1 -> 1
kernel dumps on /dev/ad0s1b
Check for coredumps
savecore: Router rebooting after a normal shutdown...
savecore: Router rebooting after a normal shutdown...
savecore: no dumps found
.
starting local daemons:set cores for group access
.
Sun Oct  6 13:33:46 UTC 2024

vqfx-re (ttyd0)

login:



login: root
Password:

--- JUNOS 19.4R1.10 built 2019-12-19 03:54:05 UTC
root@vqfx-re:RE:0%

• root 계정의 기본 'Juniper'이다.



root@vqfx-re> show version
fpc0:
--------------------------------------------------------------------------
Hostname: vqfx-re
Model: vqfx-10000
Junos: 19.4R1.10 limited
JUNOS Base OS boot [19.4R1.10]
~~~ 생략 ~~~

• Version 확인
