VRRP Route Track 동작 과정

2025. 3. 12. 23:33·Network/VRRP

1. VRRP Route Track 동작 과정

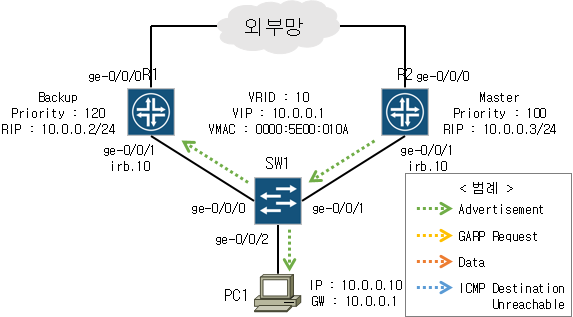

1) 구성도 및 Configuration

더보기
< R1 : 설정 >
set bridge-domains VLAN10 vlan-id 10
set bridge-domains VLAN10 routing-interface irb.10
set interfaces ge-0/0/1 unit 0 family bridge interface-mode trunk
set interfaces ge-0/0/1 unit 0 family bridge vlan-id-list 10
set interfaces irb unit 10 family inet address 10.0.0.2/24 vrrp-group 10 virtual-address 10.0.0.1
set interfaces irb unit 10 family inet address 10.0.0.2/24 vrrp-group 10 priority 120
set interfaces irb unit 10 family inet address 10.0.0.2/24 vrrp-group 10 accept-data
더보기
< R2 : 설정 >
set bridge-domains VLAN10 vlan-id 10
set bridge-domains VLAN10 routing-interface irb.10
set interfaces ge-0/0/1 unit 0 family bridge interface-mode trunk
set interfaces ge-0/0/1 unit 0 family bridge vlan-id-list 10
set interfaces irb unit 10 family inet address 10.0.0.3/24 vrrp-group 10 virtual-address 10.0.0.1
set interfaces irb unit 10 family inet address 10.0.0.3/24 vrrp-group 10 accept-data
더보기
< SW : 설정 >
set bridge-domains VLAN10 vlan-id 10
set interfaces ge-0/0/0 unit 0 family bridge interface-mode trunk
set interfaces ge-0/0/0 unit 0 family bridge vlan-id-list 10
set interfaces ge-0/0/1 unit 0 family bridge interface-mode trunk
set interfaces ge-0/0/1 unit 0 family bridge vlan-id-list 10
set interfaces ge-0/0/2 unit 0 family bridge interface-mode access
set interfaces ge-0/0/2 unit 0 family bridge vlan-id 10
  • Juniper Default Priority : 100
  • Juniper Default Preempt : Enable
  • IGP는 OSPF로 구성하였으며 OSPF Interface-Type은 Broadcast로 설정
  • 테스트를 위해 OSPF Hello Interval 및 Dead Interval을 짧게 설정



2) VRRP Route Track 필요성

  • VRRP 동작 과정 및 VRRP Preempt 동작 과정은 이미 알고 있다는 가정하에 설명 시작

  • Master 장비는 Advertisement Interval마다 VRRP Advertisement를 전송하여 자신이 생존했음을 통보

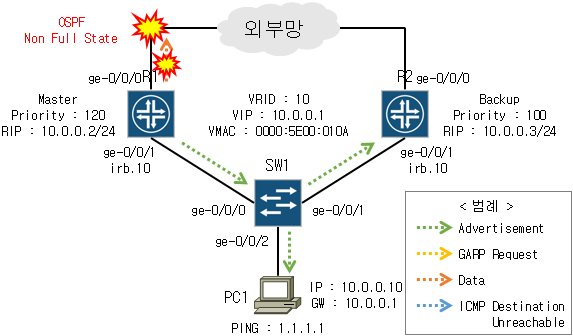

  • R1 Uplink는 Up이지만 OSPF가 Down인 상황이 발생되어도 R1은 Master 상태를 유지

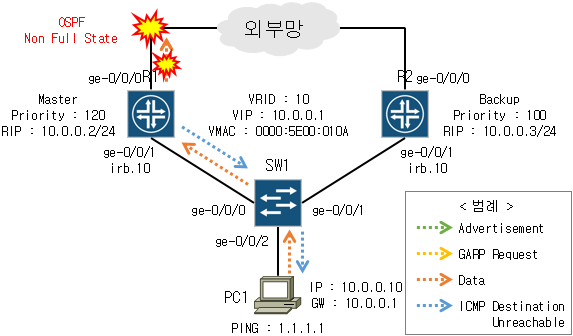

  • PC1은 외부로 데이터 전송 시, 게이트웨이인 V-MAC을 가지고 있는 Master인 R1까지 전송되지만 R1은 OSPF Neighbor가 끊어졌으므로 라우팅 테이블에 D-IP에 대한 정보가 없으므로 전송 불가



root@R1> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   master   Active      A  0.153 lcl    10.0.0.2
                                                                vip    10.0.0.1
root@R1> show route table inet.0 1.1.1.1

root@R1>
  • R1은 VRRP Master로 동작하면서 라우팅 테이블에 1.1.1.1/32 네트워크가 없는 상태



< PC1 Ping Test >
VPCS> ping 1.1.1.1

*10.0.0.2 icmp_seq=1 ttl=255 time=5.863 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=2 ttl=255 time=9.422 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=3 ttl=255 time=4.103 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=4 ttl=255 time=2.680 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=5 ttl=255 time=4.117 ms (ICMP type:3, code:0, Destination network unreachable)



3) VRRP Interface Track 동작 과정

(1) VRRP Interfae Track Configuration

< R1 : VRRP Route Track 설정 >
set interfaces irb unit 10 family inet address 10.0.0.2/24 vrrp-group 10 track route 1.1.1.1/32 routing-instance default priority-cost 70
	## default routing-instance에 1.1.1.1/32 Route 제거 시, Priority 70 감소
set interfaces irb unit 10 family inet address 10.0.0.2/24 vrrp-group 10 track priority-hold-time 45
	## 45초 동안 대기 후, Priority 변경



(2) R1 OSPF Neighbor Failure

  • R1 라우팅 테이블에 1.1.1.1/32 네트워크가 제거되어도 위에서 설정한 'priority-hold-time' 시간 동안 R1은 VRRP Priority 값을 변경하지 않고 동작



root@R1> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   master   Active      A  0.307 lcl    10.0.0.2
                                                                vip    10.0.0.1
root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: master, VRRP Mode: Active
  Priority: 120, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Advertisement Timer: 0.924s, Master router: 10.0.0.2
  Virtual router uptime: 09:42:46, Master router uptime: 00:01:50
  Virtual Mac: 00:00:5e:00:01:0a
  Preferred: yes
  Tracking: enabled
    Current priority: 120, Configured priority: 120
    Priority hold time: 45, Remaining: 40.382, Pending priority: 50
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      unknown                     70
  • Route Track이 Enable되었고 라우팅 테이블에 1.1.1.1/32 네트워크가 Unknown 상태임을 인지하였지만 'priority-hold-time' 동안 Priority 값을 변경하지 않고 유지하여 Master로 계속 동작



root@R1> show route table inet.0 1.1.1.1

root@R1>
더보기
< PC1 : Ping Test >
VPCS> ping 1.1.1.1 -c 1000

84 bytes from 1.1.1.1 icmp_seq=1 ttl=63 time=4.796 ms
84 bytes from 1.1.1.1 icmp_seq=2 ttl=63 time=4.230 ms
84 bytes from 1.1.1.1 icmp_seq=3 ttl=63 time=6.181 ms
84 bytes from 1.1.1.1 icmp_seq=4 ttl=63 time=5.613 ms
*10.0.0.2 icmp_seq=5 ttl=255 time=4.173 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=6 ttl=255 time=602.151 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=7 ttl=255 time=574.668 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=8 ttl=255 time=3.741 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=9 ttl=255 time=3.263 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=10 ttl=255 time=4.490 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=11 ttl=255 time=4.239 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=12 ttl=255 time=3.891 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=12 ttl=255 time=4.825 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=14 ttl=255 time=19.651 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=15 ttl=255 time=3.336 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=16 ttl=255 time=3.557 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=17 ttl=255 time=3.624 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=18 ttl=255 time=3.546 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=19 ttl=255 time=163.029 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=20 ttl=255 time=678.021 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=21 ttl=255 time=4.475 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=22 ttl=255 time=5.421 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=23 ttl=255 time=4.164 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=24 ttl=255 time=5.134 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=25 ttl=255 time=3.747 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=26 ttl=255 time=574.001 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=27 ttl=255 time=634.771 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=28 ttl=255 time=4.413 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=29 ttl=255 time=5.088 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=30 ttl=255 time=2.711 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=31 ttl=255 time=3.671 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=32 ttl=255 time=3.632 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=33 ttl=255 time=517.566 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=34 ttl=255 time=298.080 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=35 ttl=255 time=2.645 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=36 ttl=255 time=4.199 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=37 ttl=255 time=5.630 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=38 ttl=255 time=4.156 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=39 ttl=255 time=536.575 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=40 ttl=255 time=802.922 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=41 ttl=255 time=4.071 ms (ICMP type:3, code:0, Destination network unreachable)
*10.0.0.2 icmp_seq=42 ttl=255 time=3.621 ms (ICMP type:3, code:0, Destination network unreachable)
84 bytes from 1.1.1.1 icmp_seq=43 ttl=63 time=5.130 ms
84 bytes from 1.1.1.1 icmp_seq=44 ttl=63 time=5.758 ms
84 bytes from 1.1.1.1 icmp_seq=45 ttl=63 time=5.852 ms
84 bytes from 1.1.1.1 icmp_seq=46 ttl=63 time=4.402 ms
84 bytes from 1.1.1.1 icmp_seq=47 ttl=63 time=5.687 ms
84 bytes from 1.1.1.1 icmp_seq=48 ttl=63 time=4.398 ms
84 bytes from 1.1.1.1 icmp_seq=49 ttl=63 time=5.296 ms
84 bytes from 1.1.1.1 icmp_seq=50 ttl=63 time=4.247 ms
  • VRRP Priority 값을 변경하지 않으므로 PC1은 외부로 데이터 전송 시, 게이트웨이인 V-MAC을 가지고 있는 Master인 R1까지 전송되지만 R1은 OSPF Neighbor가 끊어져 라우팅 테이블에 D-IP에 대한 정보가 없으므로 PC1은 1.1.1.1과 통신 불가
  • 위 Ping Test는 R1 OSPF Down 시, Convergence될 때까지 진행한 결과로, R2가 Backup→Master로 변경될 때까지 통신 불가



  • R1은 'priority-hold-time' 후에 Priority를 감소하였지만 아직 Master로 동작



root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: master, VRRP Mode: Active
  Priority: 50, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Advertisement Timer: 0.723s, Master router: 10.0.0.2
  Virtual router uptime: 09:58:25, Master router uptime: 00:02:49
  Virtual Mac: 00:00:5e:00:01:0a
  Preferred: yes
  Tracking: enabled
    Current priority: 50, Configured priority: 120
    Priority hold time: 45, Not running
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      unknown                     70

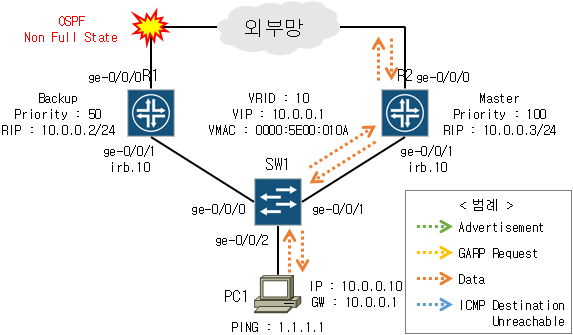

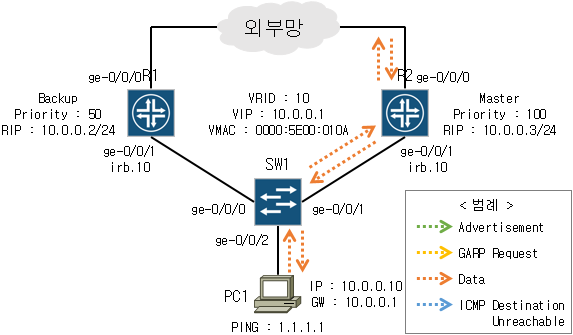

(3) Master Device Change

  • R2는 본인보다 Priority가 낮은 VRRP Advertisement를 수신하고 Preempt 옵션이 동작하여 Master로 변경
  • PC1은 외부로 데이터 전송 시, 게이트웨이인 V-MAC을 가지고 있는 Master 장비인 R2로 전송되고 R2는 라우팅 테이블에 D-IP에 대한 정보가 있으므로 통신 가능



root@R1> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   backup   Active      D  2.826 lcl    10.0.0.2
                                                                vip    10.0.0.1
                                                                mas    10.0.0.3
root@R2> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   master   Active      A  0.141 lcl    10.0.0.3
                                                                vip    10.0.0.1
root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: backup, VRRP Mode: Active
  Priority: 50, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Dead timer: 3.241s, Master priority: 100, Master router: 10.0.0.3
  Virtual router uptime: 09:59:16
  Preferred: yes
  Tracking: enabled
    Current priority: 50, Configured priority: 120
    Priority hold time: 45, Not running
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      unknown                     70
  • Route Track이 동작하여 Priority를 50으로 감소하였으며 Backup으로 동작 중이었던 R2는 Master로 동작



Oct  4 17:41:05  R1 rpd[6085]: RPD_OSPF_NBRDOWN: OSPF neighbor 1.1.2.1 (realm ospf-v2 ge-0/0/0.0 area 0.0.0.0) state changed from Full to Down due to InActiveTimer (event reason: neighbor was inactive and declared dead)
Oct  4 17:41:51  R1 vrrpd[16092]: VRRPD_NEW_BACKUP: Interface irb.10 (local address 10.0.0.2) became VRRP backup for group 10

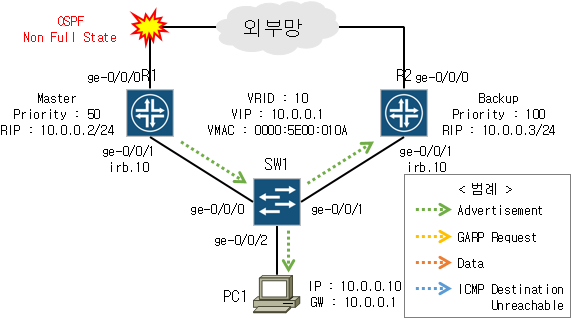

  • R1은 로그 확인 결과 설정한 'priority-hold-time'과 비슷한 45s 후에 Master→Backup으로 변경



(4) R1 OSPF Neighbor Recovery

  • R1 라우팅 테이블에 1.1.1.1/32 네트워크가 생성되어도 위에서 설정한 'Priority-hold-time' 시간 동안 R1은 VRRP Priority 값을 변경하지 않고 동작



root@R1> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   backup   Active      D  2.553 lcl    10.0.0.2
                                                                vip    10.0.0.1
                                                                mas    10.0.0.3
root@R2> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   master   Active      A  0.172 lcl    10.0.0.3
                                                                vip    10.0.0.1
root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: backup, VRRP Mode: Active
  Priority: 50, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Dead timer: 3.135s, Master priority: 100, Master router: 10.0.0.3
  Virtual router uptime: 10:03:47
  Preferred: yes
  Tracking: enabled
    Current priority: 50, Configured priority: 120
    Priority hold time: 45, Remaining: 36.329, Pending priority: 120
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      up                          70
  • Route Track이 Enable되었고 라우팅 테이블에 1.1.1.1/32 네트워크가 Up 상태임을 인지하였지만 'priority-hole-time'동안 Priority 값을 변경하지 않고 유지하여 Backup으로 계속 동작



root@R2> show route table inet.0 1.1.1.1

inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.1/32         *[OSPF/10] 21:30:35, metric 100
                    > to 1.1.3.1 via ge-0/0/0.0
더보기
< PC1 : Ping Test >
VPCS> ping 1.1.1.1 -c 1000

84 bytes from 1.1.1.1 icmp_seq=1 ttl=63 time=6.325 ms
84 bytes from 1.1.1.1 icmp_seq=2 ttl=63 time=4.917 ms
84 bytes from 1.1.1.1 icmp_seq=3 ttl=63 time=5.500 ms
84 bytes from 1.1.1.1 icmp_seq=4 ttl=63 time=4.848 ms
84 bytes from 1.1.1.1 icmp_seq=5 ttl=63 time=6.238 ms
84 bytes from 1.1.1.1 icmp_seq=6 ttl=63 time=4.952 ms
84 bytes from 1.1.1.1 icmp_seq=7 ttl=63 time=4.505 ms
84 bytes from 1.1.1.1 icmp_seq=8 ttl=63 time=4.676 ms
84 bytes from 1.1.1.1 icmp_seq=9 ttl=63 time=4.575 ms
84 bytes from 1.1.1.1 icmp_seq=10 ttl=63 time=4.352 ms
84 bytes from 1.1.1.1 icmp_seq=11 ttl=63 time=5.813 ms
84 bytes from 1.1.1.1 icmp_seq=12 ttl=63 time=4.731 ms
84 bytes from 1.1.1.1 icmp_seq=13 ttl=63 time=4.613 ms
84 bytes from 1.1.1.1 icmp_seq=14 ttl=63 time=3.083 ms
84 bytes from 1.1.1.1 icmp_seq=15 ttl=63 time=5.641 ms
84 bytes from 1.1.1.1 icmp_seq=16 ttl=63 time=5.137 ms
84 bytes from 1.1.1.1 icmp_seq=17 ttl=63 time=4.120 ms
84 bytes from 1.1.1.1 icmp_seq=18 ttl=63 time=4.174 ms
84 bytes from 1.1.1.1 icmp_seq=19 ttl=63 time=3.523 ms
84 bytes from 1.1.1.1 icmp_seq=20 ttl=63 time=5.637 ms
84 bytes from 1.1.1.1 icmp_seq=21 ttl=63 time=5.713 ms
84 bytes from 1.1.1.1 icmp_seq=22 ttl=63 time=5.170 ms
84 bytes from 1.1.1.1 icmp_seq=23 ttl=63 time=5.115 ms
84 bytes from 1.1.1.1 icmp_seq=24 ttl=63 time=5.849 ms
84 bytes from 1.1.1.1 icmp_seq=25 ttl=63 time=5.162 ms
84 bytes from 1.1.1.1 icmp_seq=26 ttl=63 time=5.624 ms
84 bytes from 1.1.1.1 icmp_seq=27 ttl=63 time=6.594 ms
84 bytes from 1.1.1.1 icmp_seq=28 ttl=63 time=5.426 ms
84 bytes from 1.1.1.1 icmp_seq=29 ttl=63 time=4.825 ms
84 bytes from 1.1.1.1 icmp_seq=30 ttl=63 time=5.228 ms
84 bytes from 1.1.1.1 icmp_seq=31 ttl=63 time=4.948 ms
84 bytes from 1.1.1.1 icmp_seq=32 ttl=63 time=5.249 ms
84 bytes from 1.1.1.1 icmp_seq=33 ttl=63 time=4.101 ms
84 bytes from 1.1.1.1 icmp_seq=34 ttl=63 time=4.699 ms
84 bytes from 1.1.1.1 icmp_seq=35 ttl=63 time=5.566 ms
84 bytes from 1.1.1.1 icmp_seq=36 ttl=63 time=5.155 ms
84 bytes from 1.1.1.1 icmp_seq=37 ttl=63 time=5.635 ms
84 bytes from 1.1.1.1 icmp_seq=38 ttl=63 time=5.027 ms
84 bytes from 1.1.1.1 icmp_seq=39 ttl=63 time=4.690 ms
84 bytes from 1.1.1.1 icmp_seq=40 ttl=63 time=4.663 ms
84 bytes from 1.1.1.1 icmp_seq=41 ttl=63 time=5.923 ms
84 bytes from 1.1.1.1 icmp_seq=42 ttl=63 time=5.945 ms
84 bytes from 1.1.1.1 icmp_seq=43 ttl=63 time=4.607 ms
84 bytes from 1.1.1.1 icmp_seq=44 ttl=63 time=4.697 ms
84 bytes from 1.1.1.1 icmp_seq=45 ttl=63 time=5.195 ms
84 bytes from 1.1.1.1 icmp_seq=46 ttl=63 time=6.107 ms
84 bytes from 1.1.1.1 icmp_seq=47 ttl=63 time=6.165 ms
84 bytes from 1.1.1.1 icmp_seq=48 ttl=63 time=4.935 ms
84 bytes from 1.1.1.1 icmp_seq=49 ttl=63 time=3.977 ms
84 bytes from 1.1.1.1 icmp_seq=50 ttl=63 time=5.250 ms
  • R2 라우팅 테이블에 D-IP인 1.1.1.1/32에 대한 네트워크 정보가 있으므로 PC1은 1.1.1.1과 통신 가능
  • 위 Ping Test는 R1 OSPF Full 상태로 변경 시, Convergence될 때까지 진행한 결과로, 'priority-hold-time' 동안 R2가 Master로 동작하므로 R1이 Backup→Master로 변경되어도 문제없이 통신 가능



  • R1은 'priority-hold-time' 후에 Priority를 120으로 원복하였지만 아직 Backup으로 동작



root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: backup, VRRP Mode: Active
  Priority: 120, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Dead timer: 0.000s, Master priority: 100, Master router: 10.0.0.3
  Virtual router uptime: 10:09:21
  Preferred: yes
  Tracking: enabled
    Current priority: 120, Configured priority: 120
    Priority hold time: 45, Not running
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      up                          70



(5) Master Device Change

  • R1은 본인보다 Priority가 낮은 VRRP Advertisement를 수신하고 Preempt 옵션이 동작하여 Master로 변경
  • PC1은 외부로 데이터 전송 시, 게이트웨이인 V-MAC을 가지고 있는 Master 장비인 R1로 전송되고 R1은 라우팅 테이블에 D-IP에 대한 정보가 있으므로 통신 가능



root@R1> show vrrp
Interface     State       Group   VR state VR Mode   Timer    Type   Address
irb.10        up             10   master   Active      A  0.322 lcl    10.0.0.2
                                                                vip    10.0.0.1
root@R1> show vrrp detail
Physical interface: irb, Unit: 10, Address: 10.0.0.2/24
  Index: 328, SNMP ifIndex: 537, VRRP-Traps: disabled, VRRP-Version: 2
  Interface state: up, Group: 10, State: master, VRRP Mode: Active
  Priority: 120, Advertisement interval: 1, Authentication type: none
  Advertisement threshold: 3, Computed send rate: 0
  Preempt: yes, Accept-data mode: yes, VIP count: 1, VIP: 10.0.0.1
  Advertisement Timer: 0.731s, Master router: 10.0.0.2
  Virtual router uptime: 10:12:17, Master router uptime: 00:02:56
  Virtual Mac: 00:00:5e:00:01:0a
  Preferred: yes
  Tracking: enabled
    Current priority: 120, Configured priority: 120
    Priority hold time: 45, Not running
    Interface tracking: disabled
    Route tracking: enabled, Route count: 1
      Route               VRF name     Route state      Priority cost
      1.1.1.1/32          default      up                          70
  • Route Track이 동작하여 Priority를 120으로 원복하였으며 Backup으로 동작 중이었던 R1은 Master로 동작



Oct  4 22:14:32  R1 rpd[6085]: RPD_OSPF_NBRUP: OSPF neighbor 1.1.2.1 (realm ospf-v2 ge-0/0/0.0 area 0.0.0.0) state changed from Loading to Full due to LoadDone (event reason: OSPF loading completed)
Oct  4 22:15:18  R1 vrrpd[16092]: VRRPD_NEW_MASTER: Interface irb.10 (local address 10.0.0.2) became VRRP master for group 10 with master reason priority
  • R1은 로그 확인 결과 설정한 'priority-hold-time'과 비슷한 45s 후에 Backup→Master로 변경



저작자표시 비영리 변경금지 (새창열림)

'Network > VRRP' 카테고리의 다른 글

Introduction to HSRP  (0) 2025.03.20
VRRP with RPM and Event-option Configuration(Juniper vMX)  (0) 2025.03.18
VRRP Load Balancing Configuration(Juniper vMX)  (0) 2025.03.16
VRRP Basic Configuration(Juniper vMX)  (0) 2025.03.14
VRRP Interface Track 동작 과정  (0) 2025.03.10
VRRP Preempt Hold-Time(Delay) 동작 과정  (0) 2025.03.06
VRRP Preempt 동작 과정  (0) 2025.03.04
VRRP 동작 과정  (0) 2025.03.02
'Network/VRRP' 카테고리의 다른 글
  • VRRP Load Balancing Configuration(Juniper vMX)
  • VRRP Basic Configuration(Juniper vMX)
  • VRRP Interface Track 동작 과정
  • VRRP Preempt Hold-Time(Delay) 동작 과정
ant-choi의 네트워크
ant-choi의 네트워크
안녕하세요. 네트워크 엔지니어로 근무하고 있는 직장인 입니다. 2024.08.26부터 새로운 버전으로 블로그를 개설하였습니다. 제가 스터디한 내용이나 회사에서 업무 진행 시, 필요한 내용들을 정리하여 업로드 하는 것을 목표로 하고 있습니다. 오류가 있거나 피드백이 있으신 분들은 댓글 남겨주시면 감사하겟습니다.
  • ant-choi의 네트워크
    ant-choi의 네트워크
    ant-choi의 네트워크
  • 전체
    오늘
    어제
    • 분류 전체보기 (146) N
      • Network (129) N
        • Juniper Software (0)
        • Juniper Basic (7)
        • Emulator (24)
        • Network Basic (11)
        • ARP, ICMP (14)
        • VLAN (22)
        • STP (0)
        • VRRP (11)
        • Link Aggregation (10)
        • MC-LAG (0)
        • Switching, Routing Basic (15)
        • DHCP (15) N
        • OSPF (0)
        • BGP (0)
        • Routing Instance (0)
        • VXLAN (0)
        • Issue (0)
      • Office (5)
        • Office 공통 (1)
        • Excel (1)
        • Power Point (1)
        • Word (2)
        • Outlook (0)
      • 기타 (12)
        • Windows (1)
        • Browser (4)
        • Tistory (7)
        • Notion (0)
        • Application (0)
  • 블로그 메뉴

    • hELLO· Designed By정상우.v4.10.3
    ant-choi의 네트워크
    VRRP Route Track 동작 과정
    상단으로

    티스토리툴바
