Static Route Reject and Discard Configuration(Juniper vMX)

1. Static Route Reject and Discard Configuration 구성도

1) Static Route Reject and Discard Configuration 구성도

• Reject Option

  • 패킷을 Discard하고 S-IP에게 'ICMP Destination Unreachable'을 생성하여 전송
• Discard Option

  • 패킷을 Discard만 하며 'ICMP Destination Unreachable'을 생성하지 않음



2) 테스트 장비

• Emulator : EVE-NG
• OS : Juniper vMX 18.2R1.9





2. Static Route Reject and Discard Configuration

1) Interface IP Address Configuration

< R1 : Interface IP 설정 >
set interfaces ge-0/0/1 unit 0 family inet address 1.1.2.1/24
set interfaces lo0 unit 0 family inet address 1.1.1.1/32

< R2 : Interface IP 설정 >
set interfaces ge-0/0/0 unit 0 family inet address 1.1.2.2/24
set interfaces ge-0/0/1 unit 0 family inet address 1.2.3.2/24
set interfaces lo0 unit 0 family inet address 2.2.2.2/32

< R3 : Interface IP 설정 >
set interfaces ge-0/0/0 unit 0 family inet address 1.2.3.3/24
set interfaces lo0 unit 0 family inet address 3.3.3.3/32



2) Static Route Configuration

< R1 : Static Route 설정 >
set routing-options static route 3.3.3.3/32 next-hop 1.1.2.2

root@R1> show route protocol static table inet.0

inet.0: 4 destinations, 4 routes (4 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

3.3.3.3/32         *[Static/5] 00:20:07
                    > to 1.1.2.2 via ge-0/0/1.0



3) Static Route Reject Configuration

< R2 : Static Route Reject Option 설정 >
set routing-options static route 3.3.3.3/32 reject

root@R2> show route protocol static table inet.0

inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

3.3.3.3/32         *[Static/5] 00:13:37
                      Reject

• Routing Table의 Next Hop이 'Reject'인 것을 확인



root@R2> show route forwarding-table matching 3.3.3.3 family inet table default
Routing table: default.inet
Internet:
Enabled protocols: Bridging,
Destination        Type RtRef Next hop           Type Index    NhRef Netif
3.3.3.3/32         user     0                    rjct       36     2

• Forwarding Table의 Type이 'rjct'(Reject)인 것을 확인



root@R1> ping 3.3.3.3 count 2
PING 3.3.3.3 (3.3.3.3): 56 data bytes
36 bytes from 1.1.2.2: Destination Net Unreachable
Vr HL TOS  Len   ID Flg  off TTL Pro  cks      Src      Dst
 4  5  00 0054 5e37   0 0000  40  01 136b 1.1.2.1  3.3.3.3

36 bytes from 1.1.2.2: Destination Net Unreachable
Vr HL TOS  Len   ID Flg  off TTL Pro  cks      Src      Dst
 4  5  00 0054 5e50   0 0000  40  01 1352 1.1.2.1  3.3.3.3


--- 3.3.3.3 ping statistics ---
2 packets transmitted, 0 packets received, 100% packet loss

• ICMP Request 패킷이 R2의 Next-Hop이 Reject인 Entry와 Longest Match되어 해당 패킷을 Discard하며 S-IP로 ICMP Unreachable Message를 전송



4) Static Route Discard Configuration

< R2 : Static Route Discard Option 설정 >
set routing-options static route 3.3.3.3/32 discard

root@R2> show route protocol static table inet.0

inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

3.3.3.3/32         *[Static/5] 00:00:19
                      Discard

• Routing Table의 Next Hop이 'Discard'인 것을 확인



root@R2> show route forwarding-table matching 3.3.3.3/32 family inet table default
Routing table: default.inet
Internet:
Enabled protocols: Bridging,
Destination        Type RtRef Next hop           Type Index    NhRef Netif
3.3.3.3/32         user     0                    dscd       34     2

• Forwarding Table의 Type이 'dscd'(Discard)인 것을 확인

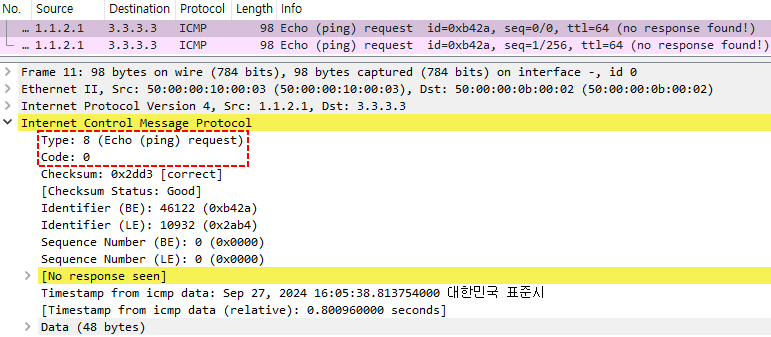

root@R1> ping 3.3.3.3 count 2
PING 3.3.3.3 (3.3.3.3): 56 data bytes

--- 3.3.3.3 ping statistics ---
2 packets transmitted, 0 packets received, 100% packet loss

• ICMP Request 패킷이 R2의 Next-Hop이 Discard인 Entry와 Longest Match되어 해당 패킷을 Discard
